Coaxial cables remain the backbone of modern signal transmission systems, delivering everything from high-definition television broadcasts to multi-gigabit internet access. Their seemingly simple design conceals complex engineering that balances electromagnetic principles, material science, and precision manufacturing. This comprehensive guide explores the intricate technical aspects of coaxial cable design, construction, and performance characteristics that network engineers and technicians need to understand for optimal system deployment.
Fundamental Construction Elements
The performance of any coaxial cable stems directly from its physical construction and material composition. Each component plays a critical role in determining signal integrity, bandwidth capacity, and environmental durability.
Core Conductor Engineering
The center conductor forms the primary signal pathway in coaxial systems:
- Material Composition: Modern cables utilize either solid copper (SC) or copper-clad steel (CCS) conductors. According to TIA-568.3-D standards, solid copper offers superior conductivity with approximately 3% lower DC resistance than CCS alternatives, particularly important for frequencies below 50 MHz.
- Dimensional Precision: Conductor diameter must be maintained within ±0.003mm tolerance across manufacturing runs to ensure consistent impedance characteristics across the cable’s length, per IEC 61196-1:2021 requirements.
- Surface Treatment: Advanced manufacturing techniques apply specialized plating (typically silver or tin) to prevent oxidation and maintain long-term performance, particularly in humid environments where signal degradation can occur rapidly.
For applications requiring maximum signal integrity, you can learn more about conductor material selection in our detailed comparison at Copper-Clad Steel (CCS) vs. Solid Copper Coax.
Dielectric Technology
The insulating layer between conductor and shield critically influences signal velocity and loss characteristics:
- Material Evolution: Beyond traditional solid polyethylene (PE), modern cables employ advanced dielectric formulations:
- Gas-injected foam polyethylene (FPE) reduces the dielectric constant to approximately 1.5 (versus 2.3 for solid PE), increasing velocity of propagation to over 85%
- PTFE-based compounds for high-temperature environments up to 200°C
- Air-spaced designs using spiral or star-shaped spacers to maximize air content (approaching 85% air) for ultra-low loss performance
- Loss Tangent: The dielectric’s loss tangent directly impacts signal attenuation. Modern materials achieve values below 0.0002 at 1 GHz, compared to 0.0005 in older generations, reducing dielectric-related losses by up to 60%.
- Dimensional Stability: Temperature cycling can cause dielectric materials to expand and contract, potentially altering impedance characteristics. Advanced formulations maintain dimensional stability from -40°C to +85°C with less than 1% diameter variation.
Shield Architecture and Performance
Shielding technology directly determines a cable’s electromagnetic compatibility (EMC) characteristics:
- Multi-Layer Designs: Modern high-performance cables incorporate up to four discrete shielding layers:
- Bonded aluminum foil (100% coverage)
- First layer copper/aluminum braid (60-95% coverage)
- Second aluminum foil layer
- Outer copper braid (40-80% coverage)
- Transfer Impedance: This critical parameter measures shield effectiveness, with values below 5 mΩ/m at 1 GHz representing excellent performance according to IEC 61196-1-112:2025 standards.
- Braid Optimization: Advanced algorithms now determine optimal braid angles (typically 28-35°) and carrier counts to maximize both flexibility and shielding effectiveness across broad frequency ranges.
For applications requiring maximum interference protection, our article on Unveiling the Benefits of Quad Shield Coaxial Cable provides in-depth analysis.
Jacket Materials and Environmental Protection
Modern jacket technology provides critical protection against environmental factors:
- Material Selection: Beyond traditional PVC, advanced formulations include:
- Low-Smoke Zero Halogen (LSZH) compounds for indoor installations
- UV-stabilized polyethylene for outdoor applications
- Flame-retardant blends meeting CMP/CMR ratings per NEC requirements
- Armored variants with additional crush resistance
- Environmental Resistance: High-performance jackets maintain flexibility from -40°C to +85°C while providing water vapor transmission rates below 2 g/m²/day, essential for maintaining stable electrical properties in varying environmental conditions.
Impedance Characteristics and Control
Characteristic impedance represents perhaps the most fundamental parameter in coaxial cable engineering, directly affecting signal integrity, power transfer, and system compatibility.
Impedance Fundamentals
Impedance in coaxial cables refers to the intrinsic opposition to alternating current flow, determined by the cable’s physical dimensions and materials:
- Critical Formula: The impedance (Z₀) is calculated using:
Z₀ = (138 × log₁₀(D/d)) / √εᵣWhere:
- D = inner diameter of outer conductor
- d = outer diameter of inner conductor
- εᵣ = relative permittivity (dielectric constant)
- Manufacturing Tolerance: According to IEC 61196-2:2023, modern high-performance cables maintain impedance within ±1.5Ω of nominal value across 100% of length, with maximum impedance variation of 2.0Ω between any two points.
- Pulse Response: Time Domain Reflectometry (TDR) testing reveals impedance variations along a cable’s length, with modern manufacturing achieving maximum peak deviations below 1.2Ω over 100m lengths.
For a detailed explanation of impedance concepts, visit our comprehensive guide on Mastering Coaxial Cable Impedance for Optimal Performance.
Standard Impedance Values and Applications
Two dominant impedance standards have emerged, each optimized for specific applications:
| Characteristic | 50Ω Cable | 75Ω Cable |
|---|---|---|
| Primary Uses | RF communications, test equipment, wireless infrastructure, data transmission | Video distribution, CATV, satellite systems, broadband internet |
| Power Handling | Optimized for maximum power transfer (typically 30% higher than 75Ω equivalent) | Optimized for voltage transmission with lower losses |
| Attenuation | Higher at standard video frequencies | Lower at frequencies <1 GHz (approximately 20% better) |
| Common Types | RG-8, RG-58, LMR-400, Times Microwave LMR series | RG-6, RG-11, RG-59, Series 6, Series 11 |
| Typical Connectors | N-type, SMA, TNC, UHF, BNC | F-type, BNC (75Ω variant) |
| Standards Compliance | IEEE 802.3, RF test equipment standards | SCTE, DOCSIS, DVB, ATSC standards |
For most home and commercial video applications, 75Ω cable is standard. Learn more about these applications in our article on Understanding 75 Ohm: The Basics of Coaxial Cables.
Impedance Matching Principles
Impedance matching is critical for maximizing power transfer and minimizing signal reflections:
- Return Loss: Modern systems typically require return loss values of at least 20 dB (VSWR ≤ 1.22:1) across the operating frequency range.
- Critical Points: Particular attention must be paid to:
- Cable-to-connector interfaces
- Connector-to-equipment transitions
- Splices and junctions
- Terminations
- Measurement Methods: Network analyzers using calibrated test fixtures can detect impedance mismatches with precision better than ±0.2Ω across frequencies from DC to 6 GHz.
Signal Attenuation and Frequency Response
Attenuation represents the gradual loss of signal strength as RF energy travels through a coaxial cable, a critical factor in determining maximum usable cable length.
Mechanisms of Signal Loss
Signal loss in coaxial cables occurs through four primary mechanisms:
- Conductor Losses: Caused by the resistance of the inner and outer conductors. These increase with the square root of frequency due to skin effect.
- Dielectric Losses: Energy absorbed by the insulating material, proportional to frequency and the dielectric’s loss tangent.
- Radiation Losses: Signal energy escaping through imperfect shielding, becoming more significant at higher frequencies.
- Reflection Losses: Signal energy reflected due to impedance mismatches rather than transmitted forward.
Frequency Dependence of Attenuation
Attenuation increases significantly with frequency, following approximately a square-root relationship at lower frequencies and becoming more linear at higher frequencies:
| Cable Type | 50 MHz | 400 MHz | 1 GHz | 3 GHz |
|---|---|---|---|---|
| RG-6 Standard | 1.6 dB/100ft | 4.8 dB/100ft | 7.8 dB/100ft | 14.2 dB/100ft |
| RG-6 Quad Shield | 1.6 dB/100ft | 4.7 dB/100ft | 7.6 dB/100ft | 13.9 dB/100ft |
| RG-11 | 1.1 dB/100ft | 3.2 dB/100ft | 5.1 dB/100ft | 9.4 dB/100ft |
| LMR-400 | 0.7 dB/100ft | 2.1 dB/100ft | 3.3 dB/100ft | 6.1 dB/100ft |
Note: Values based on 2025 manufacturer specifications; actual performance may vary slightly by brand.
Velocity of Propagation
Velocity of propagation (VP) indicates how fast signals travel through the cable compared to the speed of light in vacuum:
- Typical Values: Range from 66% for solid PE dielectrics to 85% for foam dielectrics and up to 90% for air-spaced designs.
- Significance: Higher VP values generally correlate with lower attenuation and are particularly important for:
- Precise timing applications
- Phased array systems
- High-frequency digital signals where propagation delay can affect timing margins
For specific installation scenarios involving longer cable runs, our guide on Stretch Your Limits: How to Extend Coaxial Cables provides practical solutions.
Shielding Effectiveness and EMI Protection
Shielding performance directly determines a coaxial cable’s ability to:
- Prevent external interference from corrupting the internal signal (ingress)
- Prevent the internal signal from radiating outward (egress)
Shielding Architectures
Modern coaxial cables employ increasingly sophisticated shielding designs:
- Single Shield: Basic aluminum foil (100% coverage) or aluminum braid (60-80% coverage).
- Dual Shield: Combination of foil (100% coverage) plus braid (60-80% coverage).
- Tri-Shield: Aluminum foil + braid + second aluminum foil layer, providing increased protection against high-frequency interference.

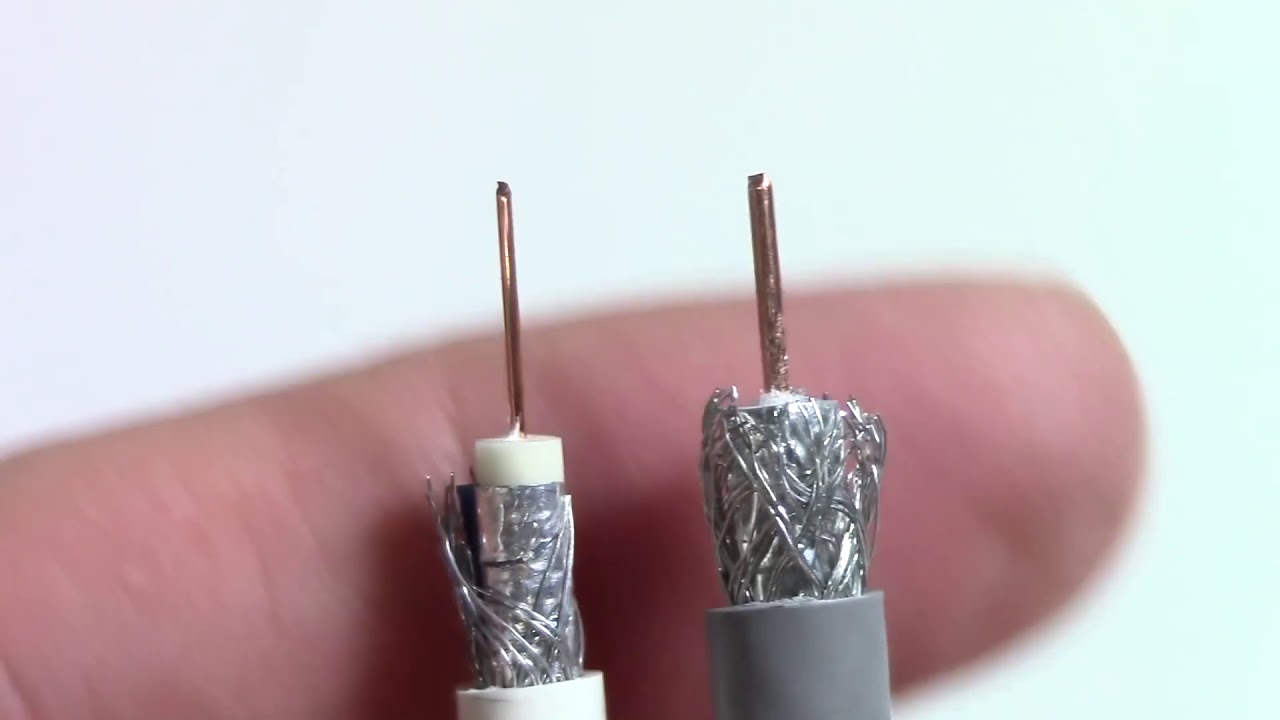

- Quad Shield: Two layers each of foil and braid, alternating (foil-braid-foil-braid), providing maximum protection for critical applications.
Performance Metrics
Two key parameters quantify shielding performance:
- Shielding Effectiveness (SE): Measured in dB, higher values indicate better shielding. According to the latest IEC standards, minimum acceptable values for various applications are: Application Minimum SE at 1 GHz Minimum SE at 3 GHz Residential 90 dB 80 dB Commercial 105 dB 95 dB Industrial 120 dB 110 dB Medical/Scientific 130 dB 120 dB
- Transfer Impedance (TI): Measured in mΩ/m, lower values indicate better shielding. Per IEC 61196-1-112:2025, high-performance cables maintain TI values below 5 mΩ/m at frequencies up to 1 GHz.
Testing Methodologies
Modern shield testing employs sophisticated methods:
- Triaxial Method: The cable under test passes through a tube forming a triaxial system, allowing direct measurement of coupled energy.
- Absorbing Clamp Method: Provides non-destructive testing of complete cable assemblies including connectors.
- Injection Loss Method: Particularly effective for measuring shielding at frequencies above 1 GHz.
For applications in electrically noisy environments, comprehensive protection strategies can be found in our article on Protect Your Electronics: Coaxial Surge Protection Explained.
Design Principles and Industry Standards
The engineering of modern coaxial cables adheres to stringent industry standards that ensure interoperability, performance, and safety.
Key Design Parameters
Fundamental design considerations include:
- Minimum Bend Radius: Typically 10× the cable’s outer diameter for fixed installations and 20× for dynamic applications, with advanced dielectrics now enabling tighter bends.
- Temperature Range: Standard operating ranges from -40°C to +85°C, with specialty cables available for -65°C to +200°C applications.
- Mechanical Strength: Pull strength requirements of 25-100 pounds force depending on cable size, per ANSI/TIA-568 standards.
- Flame Resistance: Various ratings (CM, CMR, CMP) specifying fire performance characteristics as defined by NEC/UL standards.
Critical Industry Standards
Major standards governing coaxial cable design and performance include:
- ANSI/TIA-568.4: The primary U.S. commercial building telecommunications standard for coaxial cabling components, updated in 2023 with enhanced shielding requirements for EMI-sensitive environments.
- IEC 61196 Series: International standards for coaxial communications cables. The latest IEC 61196-1-112:2025 update focuses on improved testing methods for return loss and VSWR, critical for applications above 1.8 GHz.
- SCTE Standards: Developed by the Society of Cable Telecommunications Engineers, these focus specifically on broadband coaxial networks, including recent updates for DOCSIS 4.0 compatibility.
- MIL-DTL-17: Military specifications for coaxial cables in critical applications, emphasizing reliability under extreme conditions.
DOCSIS Specifications
Data Over Cable Service Interface Specification (DOCSIS) requirements directly impact coaxial cable design for broadband networks:
- DOCSIS 3.1: Requires support for frequencies up to 1.2 GHz (downstream) and 204 MHz (upstream).
- DOCSIS 4.0: Expands frequency requirements to 1.8 GHz and introduces Full Duplex operation, demanding coaxial cables with:
- Superior shielding (minimum 105 dB at 1.8 GHz)
- Lower attenuation across extended frequencies
- Improved group delay characteristics
- Enhanced connector performance at frequencies above 1 GHz
For network professionals upgrading infrastructure to support DOCSIS 4.0, specific cable requirements include:
- High-performance F-connectors with 360° shield continuity
- Cables with frequency rating to at least 1.8 GHz
- Quad-shield construction for critical network segments
- Precision impedance control (75Ω ±1.5Ω)
Installation Best Practices and Connectorization
Proper installation and termination are as critical as cable selection for achieving optimal system performance.
Cable Installation Guidelines
Following correct installation procedures preserves cable integrity:
- Pull Force Limitations: Never exceed the manufacturer’s specified maximum pull force, typically:
- 25 lbf for RG-6 class cables
- 40 lbf for RG-11 class cables
- 100 lbf for hardline cables
- Bend Radius Control: Install bend radius guides where cables make turns, ensuring minimum bend radius is maintained (typically 10× cable diameter for fixed installations).
- Environmental Considerations:
- Maintain 8″ minimum separation from power lines (NEC requirement)
- Use UV-resistant cables for outdoor installations
- Apply approved conduit in areas susceptible to physical damage
- Implement proper grounding and bonding per NEC Article 820
- Support Methods: Use proper support hardware with maximum spacing of:
- 4-5 feet for horizontal runs
- 3 feet for vertical runs
- Never use staples that compress the cable
For a comprehensive guide on proper installation techniques, visit our Coaxial Cable Installation Guide.

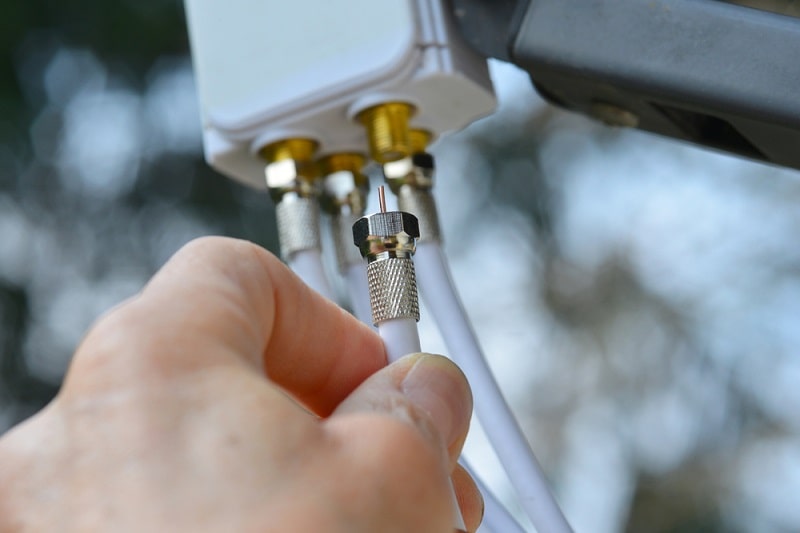

Connector Selection and Termination
Connectors represent potential weak points in any coaxial system:
- Connector Types: Select appropriate connectors based on application:
- F-type connectors for CATV/satellite (75Ω)
- N-type connectors for higher frequency/power applications
- BNC connectors for test equipment and video
- SMA/SMB for compact microwave applications
- Termination Methods:
- Compression: Provides superior weather resistance and pull strength (40+ lbf)
- Crimp: Offers good performance when done with calibrated tools
- Twist-On: Suitable only for indoor, non-critical applications
- Critical Termination Steps:
- Square cable cut with appropriate cutter
- Precise stripping of jacket, shield, and dielectric using calibrated strip tool
- Folding back shield braid without stray strands
- Ensuring center conductor extends exactly to manufacturer specification
- Applying proper compression/crimp force with calibrated tools
For detailed instructions on creating reliable terminations, see our step-by-step guide on How to Crimp Coaxial Cable.
Testing and Verification
Comprehensive testing verifies proper installation:
- Continuity Testing: Verifies basic electrical continuity and absence of shorts.
- Distance-to-Fault (DTF): Uses TDR technology to locate impedance anomalies along the cable.
- Return Loss/VSWR: Measures impedance matching and reflection characteristics (minimum 20 dB return loss recommended).
- Insertion Loss: Confirms actual signal loss matches expected values based on cable specifications.
- Shield Leakage: Tests for RF leakage at connectors and along cable length using specialized probes.
Emerging Technologies and Future Trends
Coaxial cable technology continues to evolve to meet increasing bandwidth demands and emerging applications.
DOCSIS 4.0 Implementation
Next-generation DOCSIS standards are driving significant coaxial innovations:
- Extended Frequency Range: Supporting operation up to 1.8 GHz requires:
- Enhanced shield designs with improved high-frequency performance
- Advanced dielectric formulations with lower loss tangent at higher frequencies
- Precision impedance control across broader spectrum
- Full Duplex Operation: Enables symmetrical multi-gigabit service over existing coaxial infrastructure through:
- Echo cancellation technologies
- More stringent return loss requirements (minimum 25 dB)
- Improved isolation in distribution components
- Infrastructure Requirements: Successful DOCSIS 4.0 deployment requires:
- High-performance amplifiers supporting 1.8 GHz bandwidth
- Improved passive components (splitters, taps) with extended frequency response
- Connectors with superior RF integrity at higher frequencies
Advanced Materials Research
Material science continues to advance coaxial performance:
- Graphene-Enhanced Dielectrics: Experimental dielectrics incorporating graphene nanoparticles show 15-20% lower losses than conventional materials, particularly at frequencies above 5 GHz.
- Advanced Metallization: New copper alloys and cladding techniques improve conductivity while enhancing mechanical durability.
- Biodegradable Jacket Materials: Environmentally friendly compounds that maintain performance while reducing environmental impact.
Smart Cable Technologies
Emerging intelligent features enhance cable functionality:
- Embedded Sensors: Experimental cables with integrated fiber or printed sensors can detect:
- Physical damage or tampering
- Water ingress or contamination
- Temperature variations
- Mechanical stress
- Remote Diagnostics: Advanced TDR systems can continuously monitor cable health, detecting degradation before service interruption.
- Power-over-Coax (PoC): Enhanced designs allowing power delivery alongside signals for security cameras and other applications.
Integration with Fiber and Wireless
Hybrid approaches combine coaxial capabilities with other technologies:
- Hybrid Fiber-Coaxial (HFC): Continued evolution of architectures pushing fiber deeper while maximizing existing coaxial infrastructure.
- MoCA Integration: Multimedia over Coax Alliance standards enabling networking over in-home coaxial wiring at speeds up to 2.5 Gbps.
- 5G Backhaul: Specialized high-performance coaxial cables supporting millimeter-wave 5G deployments.
Conclusion
The engineering of modern coaxial cable represents an impressive balance of physical design, material science, and electromagnetic principles. From the fundamental construction elements to advanced shielding technologies and precise impedance control, every aspect of coaxial design is purpose-engineered to deliver specific performance characteristics for diverse applications.
As bandwidth demands continue to increase and new technologies like DOCSIS 4.0 emerge, coaxial cable engineering continues to evolve through improved materials, manufacturing techniques, and design innovations. Despite the rise of fiber optics in many applications, the inherent advantages of coaxial technology-including cost-effectiveness, durability, and adaptability-ensure it will remain a critical component of communication infrastructure for years to come.
For network engineers, technicians, and system designers, understanding the technical principles behind coaxial cable engineering is essential for optimizing performance, troubleshooting issues, and planning future-proof installations that meet both current and evolving requirements.
